GC-1 AMPLIFIER

The legend is reborn.

20 years after its quiet inception, the amp that has long been considered an urban myth in pro guitar circles is finally here.

Starting at $14,999

 Contact us to order

A secret collaboration...

On a sunny afternoon at a restaurant in Southern California, two friends sat across from each other, wondering if amp design had reached its peak. That question set them on a quest to imagine a new class of amplifier.

The two friends were none other than legendary guitarist Joe Walsh and master audio engineer Brian Thompson. They had only one goal: create the best amplifier ever made, no matter the cost.

Zero-compromise design.

The amplifier design was divided into focused sections. Brian Thompson worked with Tube-Tech’s John Petersen on the preamp and optical compressor/EQ, then collaborated with Ted Weber to develop a high-impedance 15-inch speaker matched specifically to the amplifier. Ted spent months refining the speaker design, overcoming electrical challenges posed by its high impedance. This setup required unusually high voltages to deliver 60 watts RMS into the voice coil, pushing design limits and necessitating a special NASA-grade glue for insulation. After countless tuning sessions with Walsh, the amp was perfected.

Pure magic.

20 years later, we're finally releasing the GC-1 to the public. It's an amp that defies the impossible. The few who have played it say it's like a spiritual experience, but you'll have to find out for yourself.

A new class of amplifier.

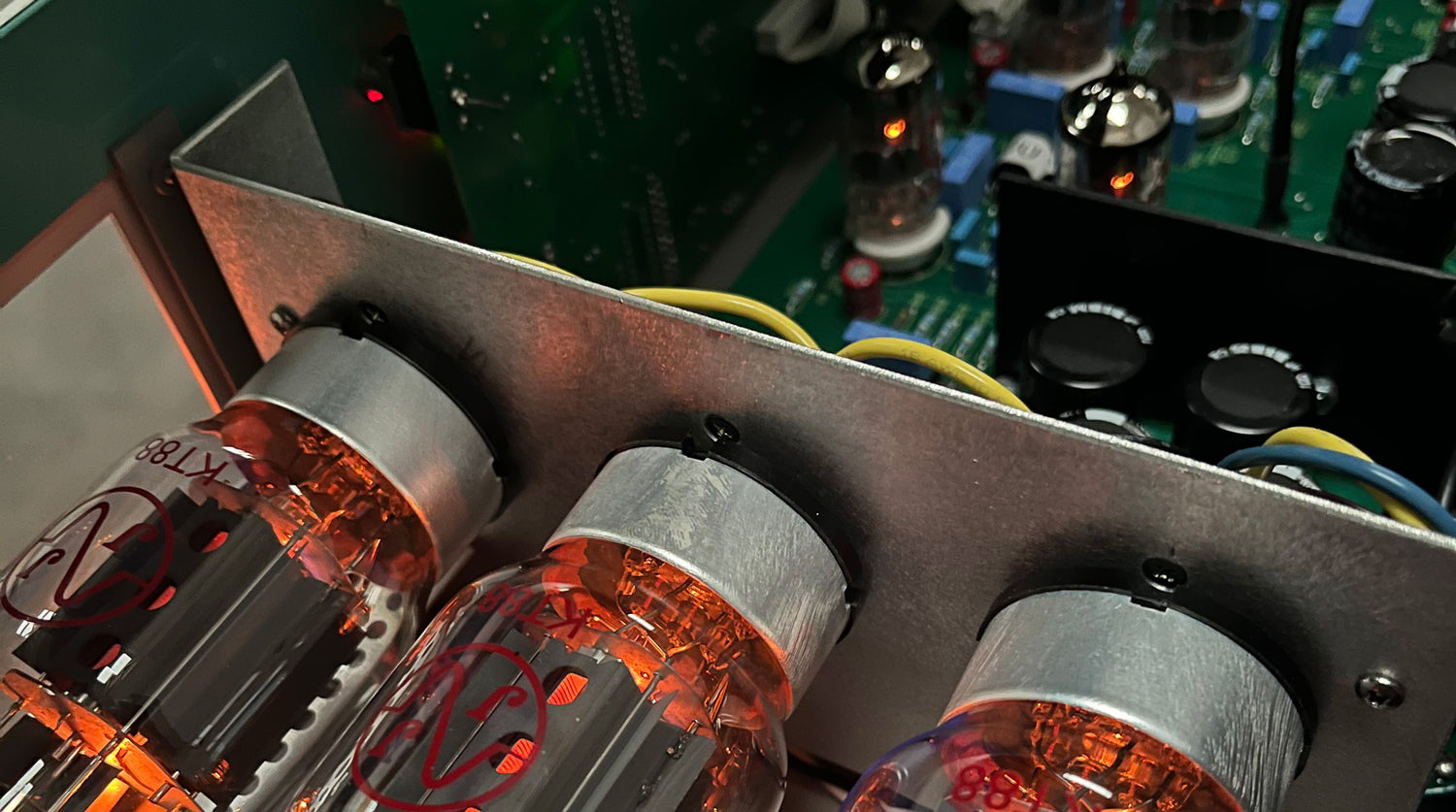

  • The GC-1 Amplifier elevates your tone with a fully analog design, preserving signal integrity through advanced voltage control and premium tube technology. With tailored 3-band dynamic EQ and optical compression, an extensive frequency range, and a powerful output stage featuring 3 KT88 tubes in parallel delivering unmatched clarity and warmth to a custom high impedance 15-inch speaker — the GC-1 captures every detail with precision.

    • Fully analog design
    • Pure signal preservation with lossless voltage stepping
    • Extremely low noise pre-amplifier
    • 3-band dynamic EQ and optical compression with individual threshold and gain controls
    • 20 Hz to 30 kHz output frequency range
    • Single-ended 3-tube power amplifier delivering 60W RMS
    • Proprietary 70 Ohm 15-inch loudspeaker

SIGNAL PATH

Inspired engineering.

The GC-1 doesn't just amplify sound; it elevates your tone to a whole new level of musicality. Here's how.

  • Ultra-low noise.

    One of the primary goals that informed our amplifier design was to eliminate noise throughout the signal path.

    To achieve this, the GC-1 has some unique features:

    • DC regulated voltage on the tube filaments, as opposed to the traditional AC.
    • The starved voltage pre-amplifier improves impedance-match to the input.
    • The output stage features regulated high voltage to the tube screens, decreasing distortion.

CONTACT US

Made for you.

Every GC-1 Amplifier is built to order. Starting at $14,999. Custom upgrades available. Limited Lifetime Warranty included with purchase.

 Contact us to order

Technical Specifications

  • MODEL
    G-Craft GC-1 Amplifier

    TYPE
    Vacuum tube amplifier

    HEAD DIMENSIONS
    20.5" W x 14" D x 7.8" H

    HEAD WEIGHT
    44.5 lbs

    CAB DIMENSIONS
    20.5" W x 14" D x 21.5" H

    CAB WEIGHT
    39 lbs

  • POWER OUTPUT
    60W RMS

    PRE-AMP TUBES
    2 x ECC88 (6DJ8)

    EQ/COMP TUBES
    2 x ECC81 (12AT7)

    SUMMING/OVERDRIVE TUBE
    2 x ECC83 (12AX7)

    OUTPUT TUBES
    3 x KT88

  • INPUT
    1/4" TS

    EFFECTS LOOP
    SEND and RETURN 1/4" TS at instrument level

    TO CAB
    70 Ohm Neutrik SpeakON or standard 16 Ohm 1/4" TS

    DIRECT OUT
    1/4" TS at line level

    AMP BYPASS
    Switch to DI only

  • FREQUENCY OUTPUT RANGE
    20 Hz - 30 kHz

    LOW BANDPASS
    20 Hz to 425 Hz (-3dB)

    MID BANDPASS
    300 Hz to 4500 Hz (-3dB)

    HIGH BANDPASS
    2800 Hz to 30 kHz (-3dB)
